Feature

Automatic sewing machine can automatically sew the cloth into a cylindrical shape.The fabric is automatically sewed into the cylinder fabric by the folding frame of the sewing machine,Automatic sewing machine can automatically cut the irregular edge of cloth during the sewing process.

• Optional installation of machine head: side cutter flat sewing machine, five-thread overlock sewing machine, ultrasonic sewing machine

• loading rack is designed under the folding rack, which can save space and hold whole roll fabric or bulk grey fabric.And with the function of expanding and opposite, the fabric can be expanded and opposite after folding the fabric neatly fold without wrinkles.

•sewing and Laba are driven by the same frequency conversion motor and adopt frequency conversion stepless speed regulation, which can meet the requirements of different fabrics and speeds. The two ends have synchronization, and the sewing speed can reach 500-900 meters per hour.

• Equipped with fabric width limit adjustment baffle to minimize width error after folding and stitching the whole roll fabric.

• Equipped with photoelectric automatic deviation correction system.

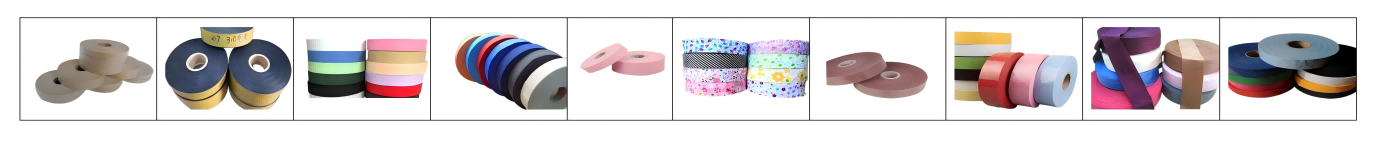

Application
